The TRIRADIUS in a fingerprint: how it develops, it's characteristics + a definition!

Lynn wrote:

Martijn (admin) wrote:

Lynn wrote:thanks for patient explanation Martijn. Where did you get all these different defnitions from?

So, while the scientific approach used to discriminate:

1 - a 'splitting', as a (asymmetric) divergence of one ridge into 2 ridges that follow same direction (no angle);
2 - a 'fork'/'Y-shape', as a (symmetric) divergence of one ridge into 2 ridges that follow the same direction (no angle);
3 - a 'bifurcation', as a divergence of one ridge into 2 ridges in different directions (angle smaller than 90 degrees);
4 - and a 'triradius' as a divergence of one ridge into 2 ridges in different directions (angle larger than 90 degrees up to 120 degrees).

... that is just a specified summary of elements that are mentioned in Schaumann & Alter's book. Penrose also described the requirement for a triradius to have angles that are all larger than 90 degrees.

(Only the aspect of 'symmetry' vs. 'asymmetry' is not mentioned in Schaumann & Alter, not sure about Penrose's work - sorry, I can not specify for that aspect where I have seen it... but that detail is not important regarding the point I tried to make in that post).

Are these Schaumann & Alter's words, or are they your interpretation / summary Martijn? I ask because formally the words bifurcation, fork and Y shape have the same meaning in the dictionary. I have not read anywhere that a 'triradius' as a divergence of one ridge into 2 ridges in different directions

Lynn, can I first ask a question in return?

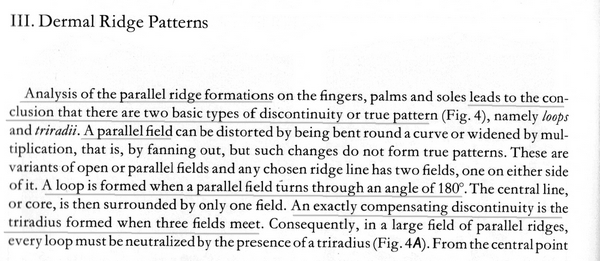

I assume that you are aware of the rule that Penrose described for a 'triradius', that it requires to have angles larger than 90 degrees.

But if that requirement is not met, how would you then name that ridge-element?


(My answer is: we can then call it a 'bifurcation', and I have refered to the work Coppock as a point of validation for this choice; but I am looking forward to hear your answer/choice...?)

Martijn (admin) wrote:Lynn, can I first ask a question in return?

I assume that you are aware of the rule that Penrose described for a 'triradius', that it requires to have angles larger than 90 degrees.

But if that requirement is not met, how would you then name that ridge-element?

(My answer is: we can then call it a 'bifurcation', and I have refered to the work Coppock as a point of validation for this choice; but I am looking forward to hear your answer/choice...?)

Ridge Count: Converging Ridge Fields

The onset of cellular proliferation which begins primary ridge formation occurs first in three distinct areas: (1) the apex of the volar pad (which corresponds with the core of the fingerprint pattern), (2) the distal periphery, or tip of the finger (near the nail bed), and (3) the distal interphalangeal flexion crease area, below the delta(s) in a fingerprint. As ridge formation continues, new proliferation occurs on the edges of the existing ridge fields, in areas that do not yet display primary ridge formation. These three "fields" of ridges converge as they form, meeting in the delta area of the finger (Figure 19). This wave-like process of three converging fields allows for the visualization of how deltas most likely form (Figure 20).

Lynn wrote:

"Patti, can you find any quote in any work which explicitely describes that a 'triradius' can been seen as an abutting of three individual rigdes?"

In the text Patti posted above, it says "One of the more common types of construction....<snip> .......Three ridges radiate from a common point".

I know it says 'radiate', but it also says that all triradii are associated with abutment of 3 ridge systems coursing in different directions.

So presumably these three ridges are abutting.

Hi Lynn,

Nope, your presumption is not correct: you should not read 'ridge systems' as ridges. Let me explain this once more with a few details in the context:

First of all, on page 58 we can read how Cummins & Midlo's only ASSOCIATE... triradii with the (surrounding) presence of 3 individual 'ridge systems'.


And you can visualize that each 'ridge system' (Penrose talks about parallel ridge fields) is composed by multiple ridges in a topographic zone - as is seen in each of the examples in figure 47 (and also in Penrose figure 4E,F,G + Schaumann & Alter's 6 examples in figure 3.5).


Therefore, the word 'ridge system' does not relate to an individual ridge, nor a radiant of the triradius. Because each radiant actually forms the border between two 'ridge systems'.

Lynn wrote:

Martijn (admin) wrote:Lynn, can I first ask a question in return?

I assume that you are aware of the rule that Penrose described for a 'triradius', that it requires to have angles larger than 90 degrees.

But if that requirement is not met, how would you then name that ridge-element?

(My answer is: we can then call it a 'bifurcation', and I have refered to the work Coppock as a point of validation for this choice; but I am looking forward to hear your answer/choice...?)

haha, I'm surprised you didn't go when posing that question!

My answer is, it could be a bifurcation, or it could be an abutment.

Martijn (admin) wrote:Can you specify:

When would you call it a 'bifurcation'?
And when would you call it an 'abutment'?

You may be correct in saying that a bifurcation can split higher than 45 degrees, but at what point/degree do you see it as no longer splitting but abutting?

Though only in the F.B.I. approach an 'abuting ridge' is defined very well: because the F.B.I. solely speaks about an 'abutting ridge/appendage' when two ridges make a right angle.

Lynn wrote:

Martijn (admin) wrote:Can you specify:

When would you call it a 'bifurcation'?
And when would you call it an 'abutment'?

erm, not sure. I think I'd have to see it first. Hence I didn't answer Patti's earlier question about

You may be correct in saying that a bifurcation can split higher than 45 degrees, but at what point/degree do you see it as no longer splitting but abutting?

I know Martijn said

Though only in the F.B.I. approach an 'abuting ridge' is defined very well: because the F.B.I. solely speaks about an 'abutting ridge/appendage' when two ridges make a right angle.

but I'm not sure that is correct(?). They talk about "IF" an appendage abuts at 90 degrees, it spoils a recurve, but do they specifically say that all abutting ridges are a right angle?

Martijn (admin) wrote:Hi Lynn,

Nope, your presumption is not correct: you should not read 'ridge systems' as ridges. Let me explain this once more with a few details in the context:

First of all, on page 58 we can read how Cummins & Midlo's only ASSOCIATE... triradii with the (surrounding) presence of 3 individual 'ridge systems'.

And you can visualize that each 'ridge system' (Penrose talks about parallel ridge fields) is composed by multiple ridges in a topographic zone - as is seen in each of the examples in figure 47 (and also in Penrose figure 4E,F,G + Schaumann & Alter's 6 examples in figure 3.5).

Therefore, the word 'ridge system' does not relate to an individual ridge, nor a radiant of the triradius. Because each radiant actually forms the border between two 'ridge systems'.

Patti wrote:In earlier discussions you argued that a system or a field was related to 1 ridge and the groove on each side.

Have you now decided it is more than 1 ridge?

Lynn wrote:So...why didn't I clean my house today, or prepare tomorrow night's palmistry lesson, or finish designing the leaflets for the forthcoming fair?... cos I was too busy doing the geeky fingerprint stuff !! I am starting to fear that the 3 of us have some as-yet unknown mental illness, called something like 'dermatoglyphicus obsessivus compulsivus'.

Martijn (admin) wrote:

Lynn wrote:

Martijn (admin) wrote:Can you specify:

When would you call it a 'bifurcation'?
And when would you call it an 'abutment'?

erm, not sure. I think I'd have to see it first. Hence I didn't answer Patti's earlier question about

You may be correct in saying that a bifurcation can split higher than 45 degrees, but at what point/degree do you see it as no longer splitting but abutting?

I know Martijn said

Though only in the F.B.I. approach an 'abuting ridge' is defined very well: because the F.B.I. solely speaks about an 'abutting ridge/appendage' when two ridges make a right angle.

but I'm not sure that is correct(?). They talk about "IF" an appendage abuts at 90 degrees, it spoils a recurve, but do they specifically say that all abutting ridges are a right angle?

Lynn, I can assure you that the F.B.I. is only talking about 'abutting ridges' when the right angle rules applies.

And since there is no reason to assume that the F.B.I. is using other rules then the ones described in the book... logical deduction can only lead to the conclusion that they assocation an 'abutting ridges' with 2 ridges that make a right angle.


By the way, this F.B.I. 'choice' makes sense!

Because IF one starts describing ridges that make an angle significantly lower than 90 degrees, then one creates a problematic situation... because where to draw the line where an 'abutting ridge' becomes a 'bifurcation'?


And therefore, regarding your combi-answer to my question... I think I can specify that to your first answer to my question is:

A 'bifurcation' (unless there is a clear indication that one could speak of 'abutting ridges').

Correct?

If the appending ridge flows off the looping ridge smoothly in such a way that it forms a bifurcation and not an abutment of two ridges at a right angle, the recurve is considered as remaining intact. The test is to trace the looping ridge toward the appendage, and if, when it is reached, the tracing may be continued as readily upon the appendage as upon the looping ridge, with no sudden, sharp change of direction, the recurve is sufficient. Figures 161 to 184 should be studied with this in mind.

If the appending ridge flows off the looping ridge smoothly in such a way that it forms a bifurcation and not an abutment of two ridges at a right angle....

Lynn wrote:Ok, thanks for reminding me Patti about

If the appending ridge flows off the looping ridge smoothly in such a way that it forms a bifurcation and not an abutment of two ridges at a right angle....

so I guess Martijn is correct that if the angle is less than 90 degrees it is a bifurcation? (in a ridge that is dividing / forking ?)

Lynn wrote:Sorry I notice that 3 other posts have been made while I was writing,,,, not read them yet, just wanted to say while I thought about it....

Do either of you have access to any papers by Harris H Wilder? I've got a print-out of something called "IX Palm and Sole Studies", page 393 - 405. But I can't get my scanner to work! In all his illustrations of triradii, the triradius consists of a roughly 'triangular shaped plot' coloured in black, that looks remarkably like Patti's central picture on her illustration....


It also takes me back to my original teachings about triradius being the vaguely triangular shaped area where the 3 ridge fields converge (which we are now talking about as being the 'triradial area').

If you look at fig 18 on P 202 of this pdf, this gives you an idea of how he colours the triradius in black. (he refers to this black area as 'triradius' in the paper I have quoted above).
http://www.biolbull.org/cgi/reprint/49/3/182.pdf

Patti wrote:

Lynn wrote:Ok, thanks for reminding me Patti about

If the appending ridge flows off the looping ridge smoothly in such a way that it forms a bifurcation and not an abutment of two ridges at a right angle....

so I guess Martijn is correct that if the angle is less than 90 degrees it is a bifurcation? (in a ridge that is dividing / forking ?)

...and if it's less than 90 degrees it's not a triradius.

Lynn wrote:
Actually.... ....I wonder if we are wasting our time in all this discussion about triradii ? As FBI don't use the term 'triradius', it might be more useful to talk about 'triradial area' and of course the 'triradial point' - which is talked about both in the scientific system and the FBI system as their delta.

The triradial area has served me well for 15 years & I will continue to use it as my focus for finding the number of triradii (or 'triradial areas') on a print (i.e. arch has no triradius, loop has one, whorl has 2 etc) - the minutae aren't that important in identifying the majority of print patterns. (but we know they are important in identifying some!)

However.... it has occured to me that the FBI delta is not always in the same position as the scientific 'triradial point'. !!!

Also one thing we haven't mentioned so far is the "singularity", which term is used in forensic fingerprint identification - the 2 singularities being the delta (or triradial point) and the core.

Patti wrote:Thank you for this link to the paper by Wilder! I did not have it!

It does look like he was seeing the same shape(s) as I do!

Lynn wrote:However.... it has occured to me that the FBI delta is not always in the same position as the scientific 'triradial point'. !!!

Also one thing we haven't mentioned so far is the "singularity", which term is used in forensic fingerprint identification - the 2 singularities being the delta (or triradial point) and the core.

Patti wrote: "Personally, I think the word triradius means and is used as - 3 ridges that radiate.

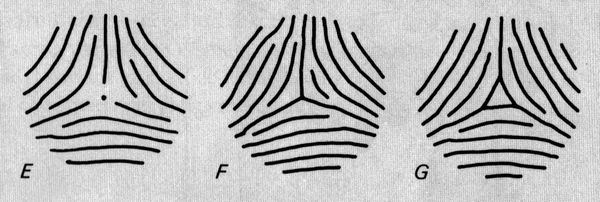

I think the triradial area is the place where these 3 ridges from 3 different fields meet.
Triradial point is the center of the 3 meeting ridges.

There is only one place that the FBI location of the delta is different than the methods by Penrose etal.

That is when there is no dot, just empty space, like the 3 corners meeting triangle > FBI - you move to the wall of the pattern area. >Science - you stay in the empty center of the trianglular space.

What do you mean by 'singularity'?

Lynn wrote:

Martijn (admin) wrote:Lynn, I made that comment because of how the F.B.I. is using the word 'bifurcation': at page 9 they have listed 6 shaped for how a 'delta' (point) can manifest, and the 'bifurcation' is listed at the number one position... which implicates that they describe any 'triradius' as a bifurcation, see the statement for figure 25 (see the picture below):



Quote from the F.B.I. book (page 11/12)

"Figure 25 shows ridge A bifurcating from the lower type line inside the pattern area. Bifurcations are also present within this pattern at points B and C. The bifurcation at the point marked "delta" is the only one which fulfills all conditions necessary for its location."


Lynn, do you now understand... ?

erm,,,no, not really!

re "which implicates that they describe any 'triradius' as a bifurcation."
but the FBI do not describe triradii at all!

Yes in this example, FBI place the delta at the point where the ridge bifurcates.
But from C&M perspective, the 'delta' is the small triangular shape where the 3 ridge fields join, and the triradial point would be in its centre.

Lynn wrote:

Martijn (admin) wrote:

Lynn wrote:thanks for patient explanation Martijn. Where did you get all these different defnitions from?

So, while the scientific approach used to discriminate:

1 - a 'splitting', as a (asymmetric) divergence of one ridge into 2 ridges that follow same direction (no angle);
2 - a 'fork'/'Y-shape', as a (symmetric) divergence of one ridge into 2 ridges that follow the same direction (no angle);
3 - a 'bifurcation', as a divergence of one ridge into 2 ridges in different directions (angle smaller than 90 degrees);
4 - and a 'triradius' as a divergence of one ridge into 2 ridges in different directions (angle larger than 90 degrees up to 120 degrees).

... that is just a specified summary of elements that are mentioned in Schaumann & Alter's book. Penrose also described the requirement for a triradius to have angles that are all larger than 90 degrees.

(Only the aspect of 'symmetry' vs. 'asymmetry' is not mentioned in Schaumann & Alter, not sure about Penrose's work - sorry, I can not specify for that aspect where I have seen it... but that detail is not important regarding the point I tried to make in that post).

Are these Schaumann & Alter's words, or are they your interpretation / summary Martijn? I ask because formally the words bifurcation, fork and Y shape have the same meaning in the dictionary. I have not read anywhere that a 'triradius' as a divergence of one ridge into 2 ridges in different directions

You know what Lynn?

I am going to make my former list a little bit longer, but this time I will only present definitions that are found in the books:

1 - 'Closure' (Schaumann & Alter 1976), visually defined as: a bifurcating ridge with multiple ridges inside; (EDIT: This element only relates to the 2nd and 3rd phalanges, so I should not have mentioned this element in my list)

2a - 'Fork' (Cummins & Midlo, 1943), defined as: "a ridge may branch, forming a bifurcation";
2b - 'Fork' or 'Y-formation' (Schaumann & Alter, 1976), defined as: "represents a bifurcation of a ridge";
2c - 'Fork' (Anthony J. Bertino & Patricia Nolan Bertino, 2008), visually defined as diverging ridges;

3a - 'Hook' (Galton, 1895), defined as: ??
3b - 'Hook' or 'spur' (Craig A. Coppock, 2007), defined as: "combination of a short ridge and a bifurcation";

4a - 'Triradius' (Cummins & Midlo, 1943), defined as: "A triradius is located at the meeting point of three opposing ridge systems. In a typical whorl or loop such a meeting occurs that the conjunction of the three topographic zones - the pattern area, the distal transverse system and the proximal transverse system.";
4b - 'Triradius' (Schaumann & Alter, 1976), defined as: "A triradius is formed by the confluence of three ridge systems... The geometric center of the triradius is designated as the triradial point. Ideally, the triradial point is the meeting point of three ridges that form angles of approximately 120 degrees with another.";
4c - 'Triradius' (Loesch, 1983), defined as: "The triradius is formed when three ridge fields of parallel ridges meet and its center has three radiant lines which lie approximately at 120 degrees to another (in practice, however, singularities in the lines of greatest curvature on a surface may produce unsymmetrical triradii so that the angles between the radiants may not be equal)";
4d - 'Triradius' (Craig A Coppock, 2007), defined as: "An intersection of seperate ridges often found in the delta areas. A triradius is similar in appearance to a bifurcation yet, with a greater angle between the seperate ridge intersections.".


And after providing these official definitions, I can repeat my point once again:

Instead of all these definitions - where a 'bifurcation' was frequently mentioned but never really defined - the F.B.I. presented in 1985 a system including the following multi-definition for a 'bifurcation':

"A bifurcation is the forking or dividing of one line into two or more branches."


Three additional observations regarding this definition:

- Firstly, the definition of a 'bifurcation' is positioned in the F.B.I. book at a very prominent place: it directly follows after the definition of the 'pattern area' and the 'type lines'.

- Secondly, in the F.B.I.'s approach the 'bifurcation' became explicitely a multi-concept - where various specifications became irrelevant (such as: a - the angles between the ridges, b - the issue of whether ridges continue as parallel ridges or in a different direction, and c - whether the bifurcating ridges include no, one or more ridges... and even their direction became irrelevant).

- And finally, because in this F.B.I. system the focuss became on the element of a 'bifurcation', the other elements from the older vocabulary were no longer required to be used (the older elements include e.g. the words: 'closure', 'fork', 'hook', 'spur' and 'triradius').


Lynn, I think I have spend my time well tonight... and I hope this will help you finally to recognize my point regarding the importance of the 'bifurcation'.



(Thanks for your questions)

Lynn wrote:

Patti wrote:Thank you for this link to the paper by Wilder! I did not have it!

It does look like he was seeing the same shape(s) as I do!

and the same shape that I was originally taught about triradius!

who originally defined (or used the term) triradius? Wilder was many years before Cummins & Midlo, Penrose etc. Galton didn't use the term "triradius" - he used delta. (even tho Martijn tells us that delta is the more modern terminology, Galton used it many years before 1985!)
